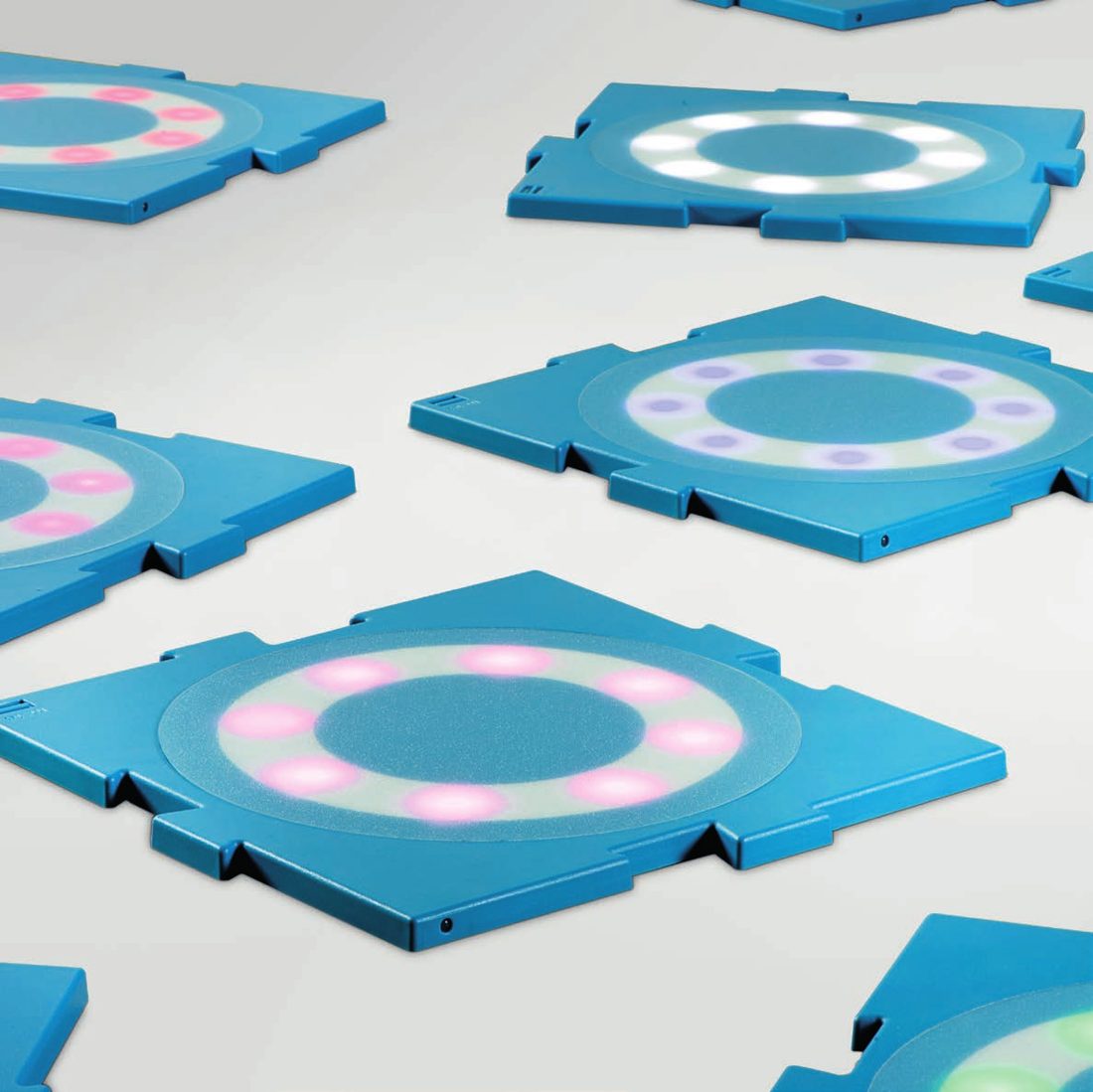

- Tile dimensions
- 300 × 300 × 11 mm
- Tile weight
- 500 g
- Set weight
- 5 kg
- Tablet

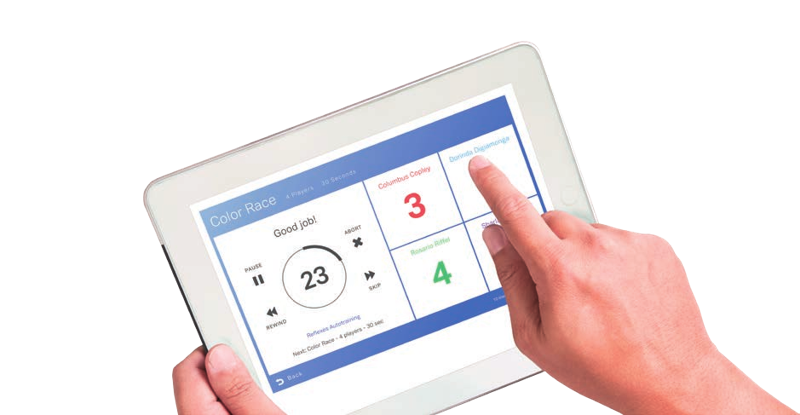

- MOTO-A10: 10" MOTO tiles tablet (Android)
- Battery
- DC 3.7 V, 1150 mAh, 4.255 Wh, rechargeable · up to 15 hours of use, 2–3 hours to recharge
- Adapter
- Input AC 100–240 V, 50–60 Hz, 1.5 A · Output DC 5 V, 4.5 A
- Radio
- 2450.0–2480.0 MHz, GFSK modulation, integral antenna
- Maximum user weight
- 150 kg
- Minimum sensor activation
- 2.5–4.5 kgf
- Ambient and storage temperature
- −10 to 55 °C
- Maximum humidity
- 90 % RH
- Certifications
- CE, FCC, ASTM, Japan Radio Law
- Brain Science mark
- Hitachi HiTech
- Registered trademarks
- Moto Tiles®, Moto®
- Registered design
- DK 201600002
- Patents
- US 8241183 · US 9662557 · EP 2276407 · JP 6049836
- Evidence of effect
- 15 scientific publications
